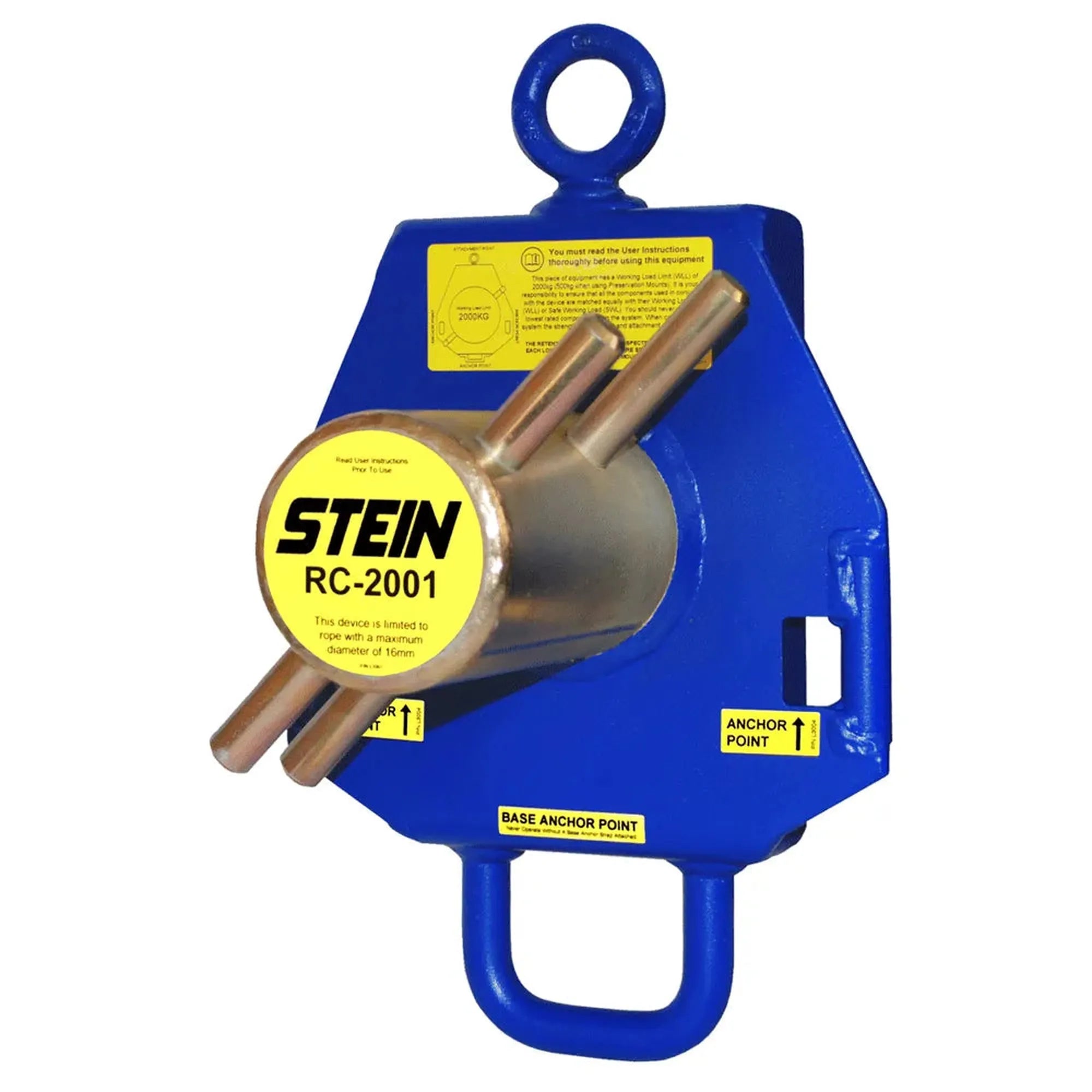

Stein RC2001 Fixed Lowering Device

Stein RC2001 Fixed Lowering Device

The Stein RC2001 Fixed Lowering Device is a medium-duty single bollard lowering device designed for controlled rigging operations. It supports secure rope handling while allowing straightforward installation by a single operator using the top attachment point as a suspension point.

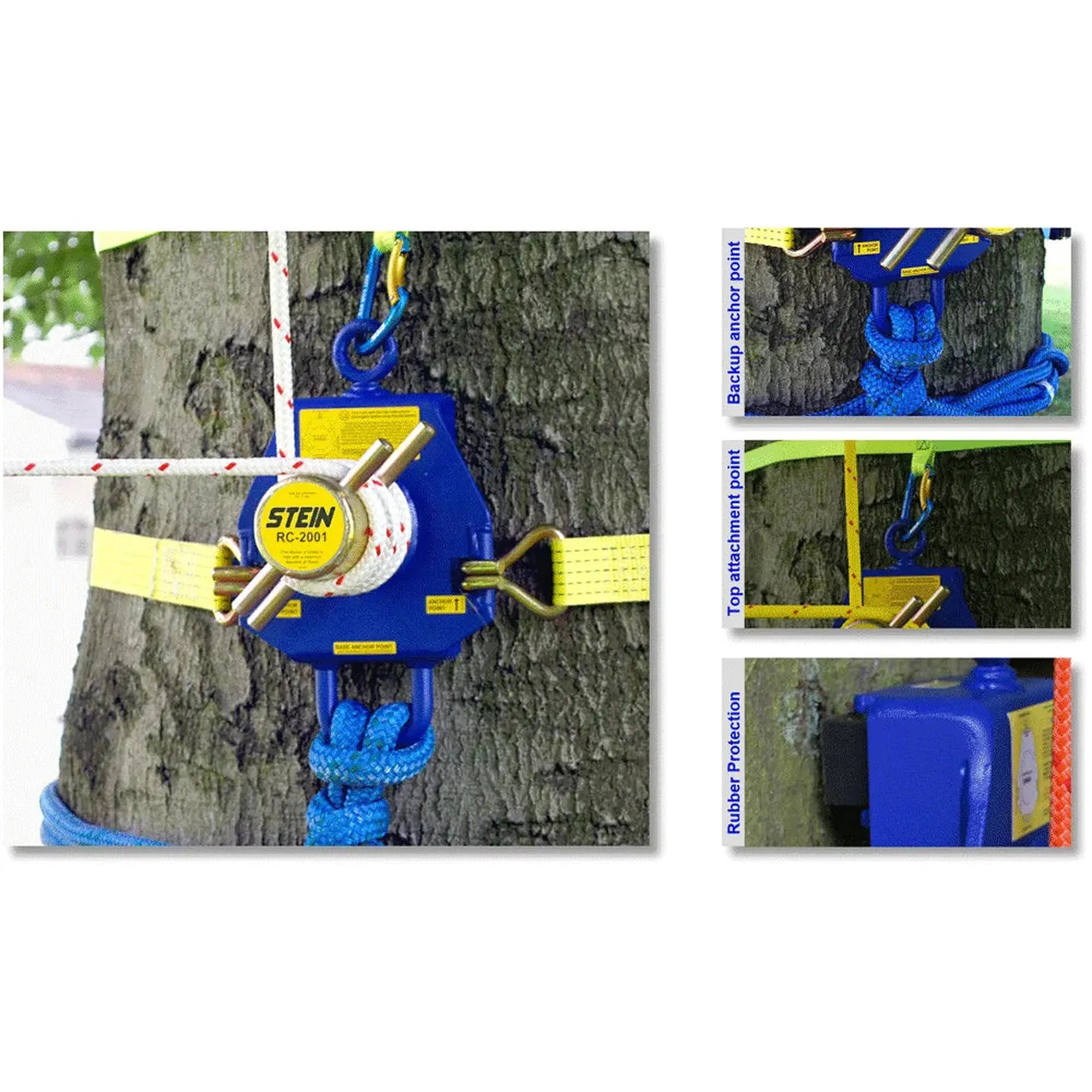

The device mounts to the tree using a dedicated ratchet strap combined with a backed-up choked sling at the base anchor. This setup helps maintain stable positioning during lowering tasks while supporting controlled load management.

Using the same drum diameter as the RC2000, the RC2001 accommodates larger working ropes and controlled lowering under higher loads. Angled rope guide bars on the drum support smooth rope flow and efficient handling during operation.

Key Features

• Controlled rigging – Medium-duty single bollard design
• Simple installation – Top attachment point for one-person mounting
• Secure fixing – Supplied with ratchet strap and webbing
• Efficient rope handling – Angled rope guide bars on drum
• Expanded compatibility – Works with RC-3100 pre-tension pulley

Specifications

• Model number RC2001
• Working load limit 2000 kg subject to mounting type
• Maximum rope size 16 mm
• Style Single fixed bollard
• Barrel diameter 76 mm
• Weight 5.1 kg
• Weight with protection rubbers 5.8 kg
• Length 185 mm
• Length with protection rubbers 205 mm
• Width 185 mm
• Height 325 mm
• Finish Zinc plated and powder coated

Why Choose the Stein RC2001 Fixed Lowering Device?

✅ Controlled lowering – Supports medium-duty rigging tasks

✅ Secure mounting – Uses ratchet strap and sling system

✅ Larger rope handling – Suitable for demanding operations

✅ Ready for use – Supplied as a complete rigging solution

How to Use

1. Suspend the device using the top attachment point
2. Secure it to the tree with the supplied ratchet strap
3. Back up the base anchor using a suitable sling
4. Route the rope around the bollard as required
5. Inspect the device, strap, and rubbers regularly
