Stein LD750 Invert-A-Wrap

Stein LD750 Invert-A-Wrap

The Stein LD750 Invert-A-Wrap is a cost-effective rope friction device designed for controlled lowering of timber or objects from height. Its simple design allows mounting in either orientation, helping operators achieve quick and flexible setup on site.

The device is compatible with STEIN Hauler Kits, allowing loads to be raised before lowering or pre-tensioned when required. This added functionality supports a wider range of controlled rigging operations while maintaining efficient handling.

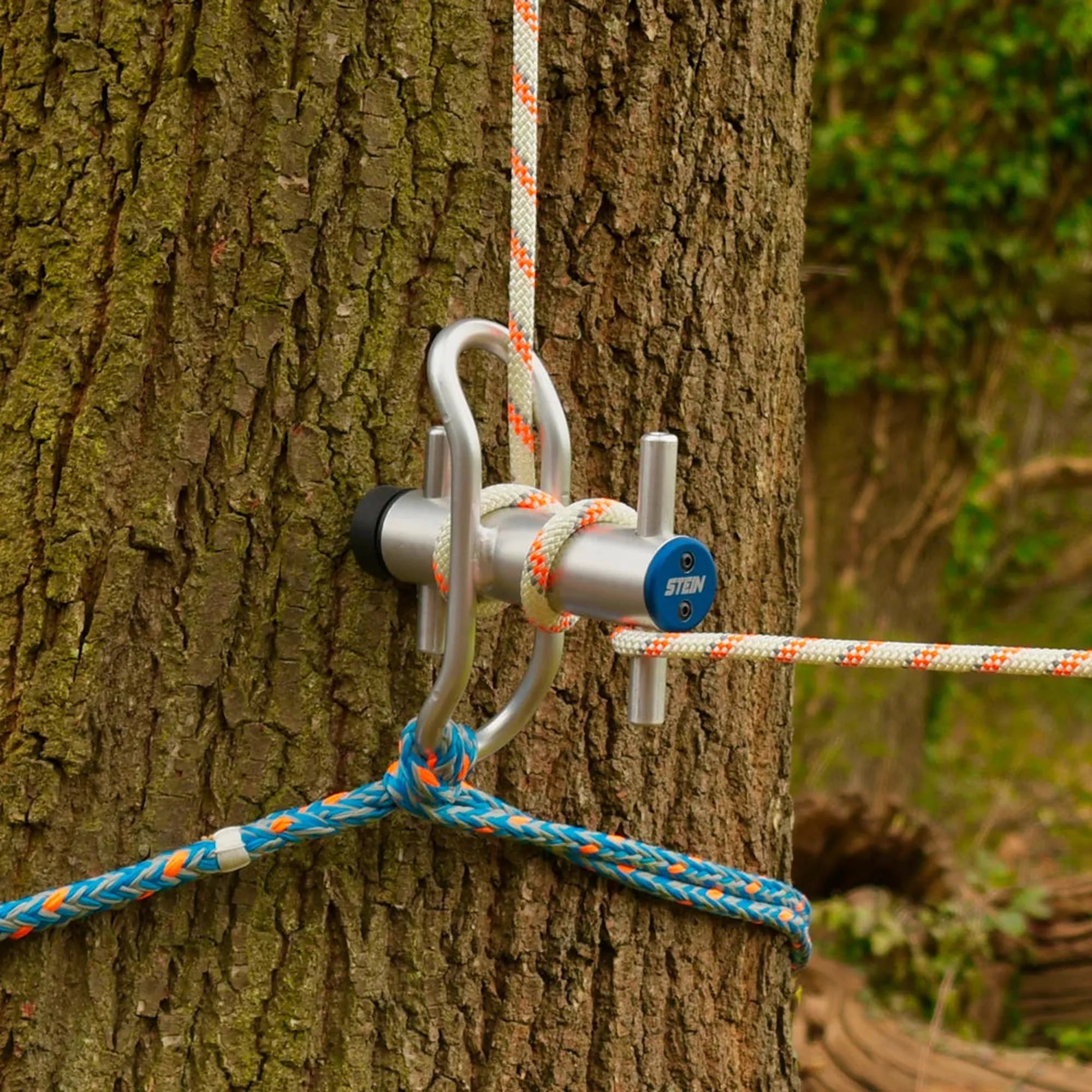

Replaceable fairleads guide the rope effectively while also supporting secure tie-off and rope redirection. This allows operators to work from a safer distance when needed, while the removable rubber protection cover helps reduce contact damage to mounting surfaces during use.

Key Features

• Controlled rigging – Rope friction device for lowering tasks
• Flexible mounting – Installs in either orientation
• Expanded capability – Compatible with STEIN Hauler Kits
• Improved handling – Replaceable fairleads guide and redirect rope

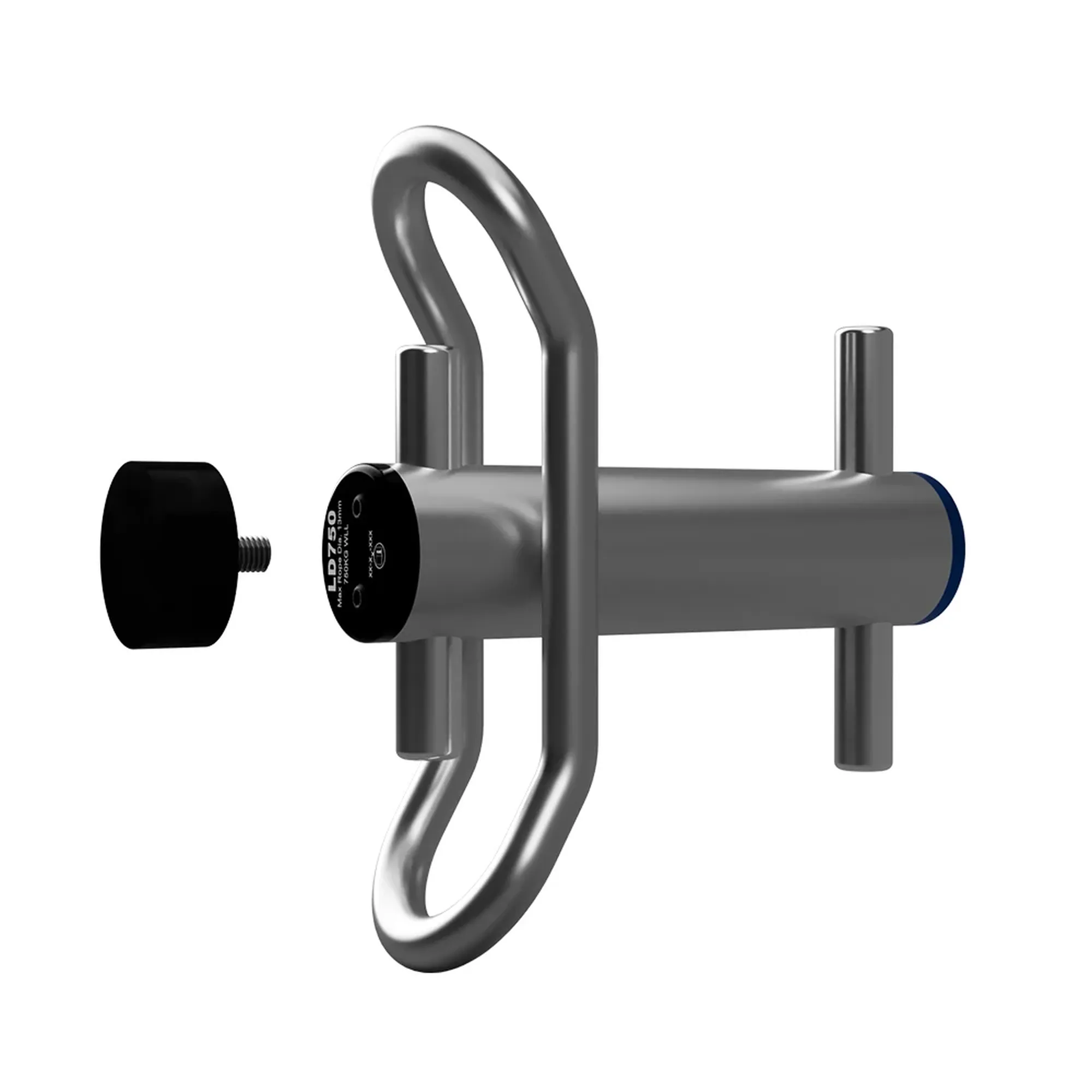

• Surface protection – Removable rubber cover fitted

Specifications

• Model LDS750
• Maximum rope diameter 13 mm 1/2”
• Working load limit 750 kg
• Device weight 1.925 kg
• Protection Removable and replaceable rubber cover

Why Choose the Stein LD750 Invert-A-Wrap?

✅ Controlled lowering – Supports smooth rigging operations

✅ Flexible setup – Mounts in either orientation

✅ Greater versatility – Works with STEIN Hauler Kits

✅ Safer operation – Allows rope redirection and remote working

How to Use

1. Mount the device securely in the chosen orientation
2. Route the rope through the fairleads
3. Attach a hauler kit if lifting or pre-tensioning is required
4. Operate the system from a safe working position
5. Inspect the fairleads and rubber cover regularly
