Description

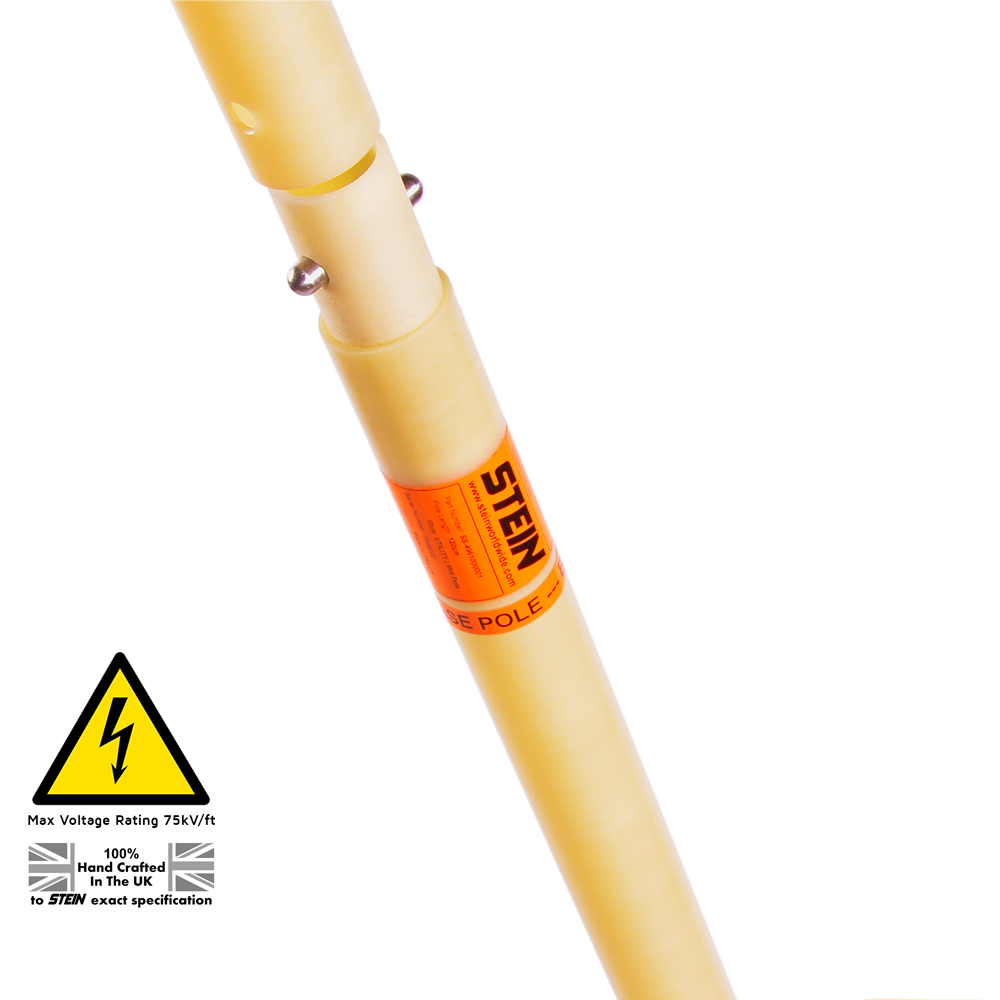

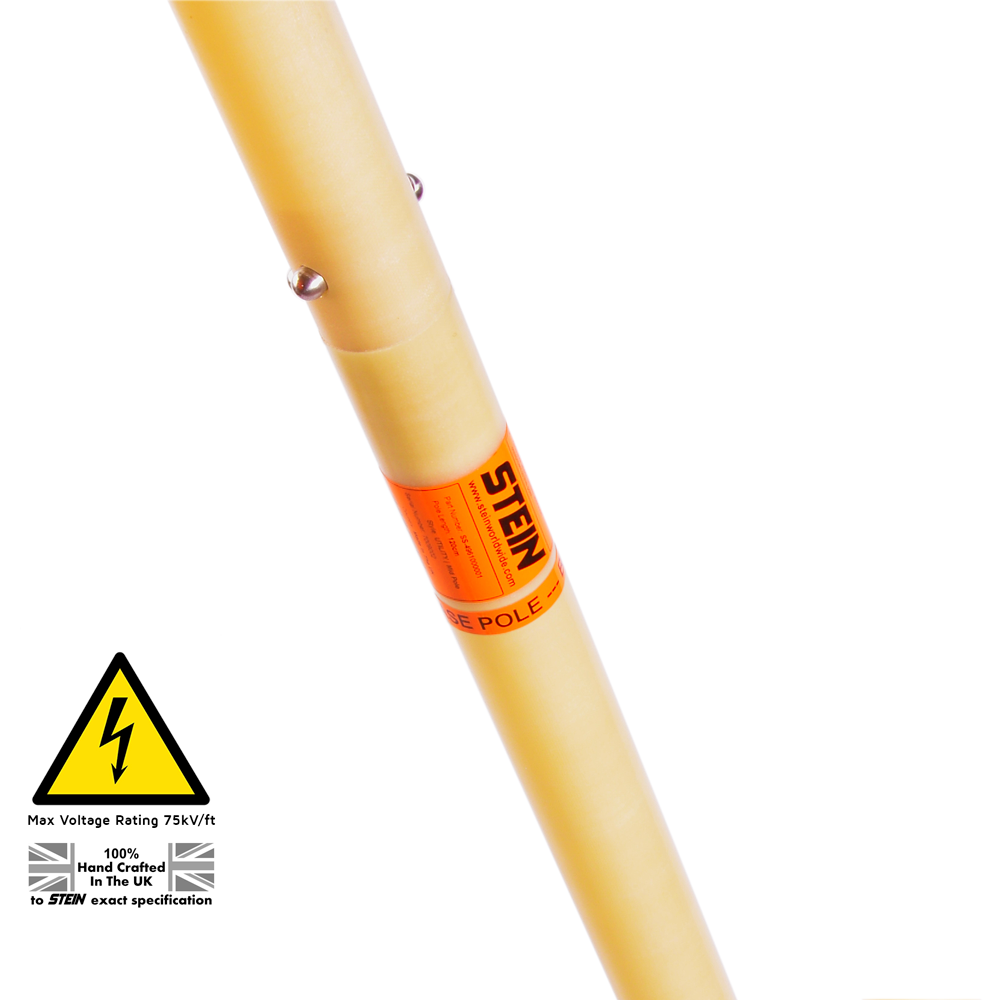

This electrically rated base pole provides a stable and accurate starting section for insulated pole assemblies used in utility and arborist work. It supports controlled ground-based operation while maintaining strength, insulation performance, and joint accuracy across extended pole systems.
The construction uses bias-woven glass fibre combined with epoxy resin to deliver high stiffness, strong mechanical performance, and corrosion resistance. Precision machining reduces flex at the joints, while a protective base end improves durability during ground contact and handling.
Key Features
- Electrically rated replacement base section
- Glass fibre and epoxy resin construction
- High axial and hoop stiffness to reduce flex
- No metal joint fittings within the pole system
- Spring-button clip for secure pole connection
Specifications
- Product type: replacement base pole
- Working length: 1220 mm
- Overall length: 1270 mm
- Diameter: 40 mm
- Wall thickness: 2.4 mm
- Weight: 685 g
- Electrical rating: up to 75 kV/ft, batch tested
Why Choose This Replacement Base Pole?
âś… Provides a stable starting point for insulated pole systems
âś… Supports electrical insulation in utility environments
âś… Precision joints improve rigidity across assemblies
âś… Compatible with approved pole attachments
âś… Built to consistent professional specifications
How to Use & Maintain
- Inspect the pole and ensure it is clean and dry before use.
- Connect additional sections using the spring-button clip.
- Check all joints lock fully before fitting tools.
- Clean and polish the surface after use.
- Inspect regularly and replace if damage is present.
