Description

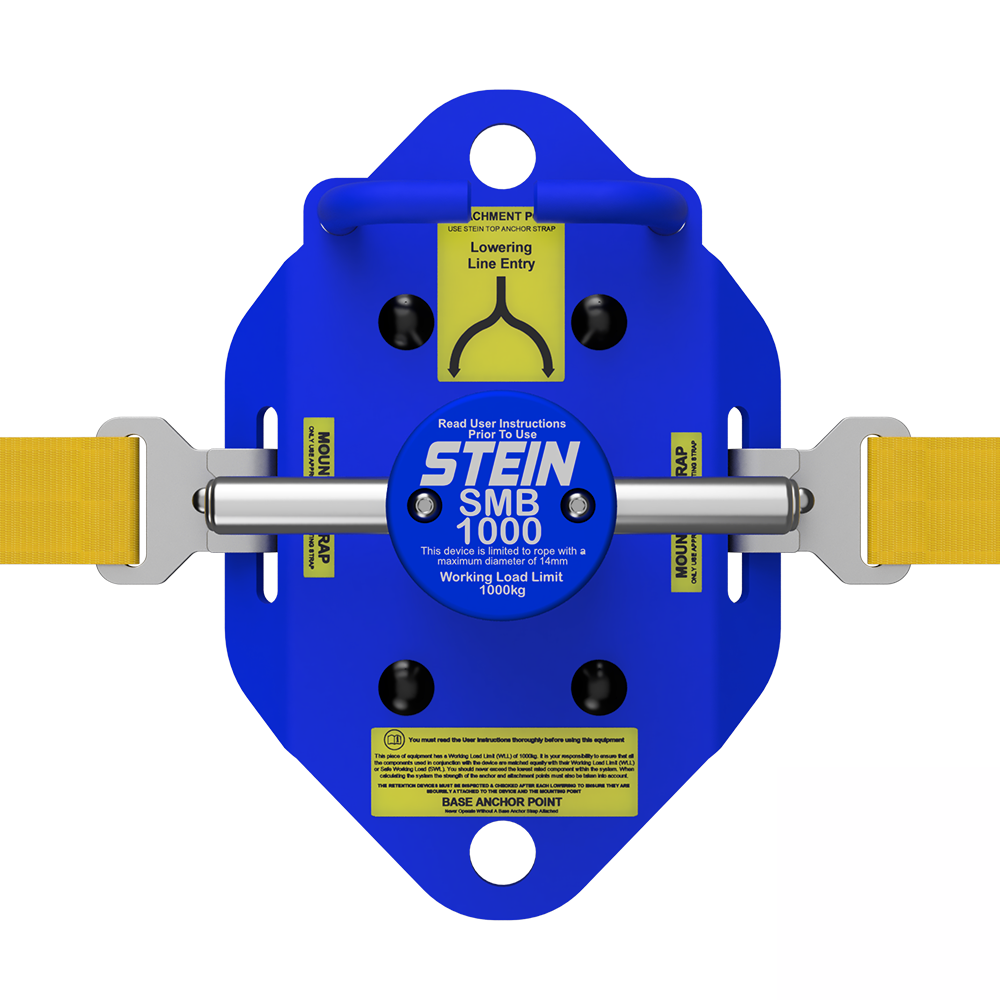

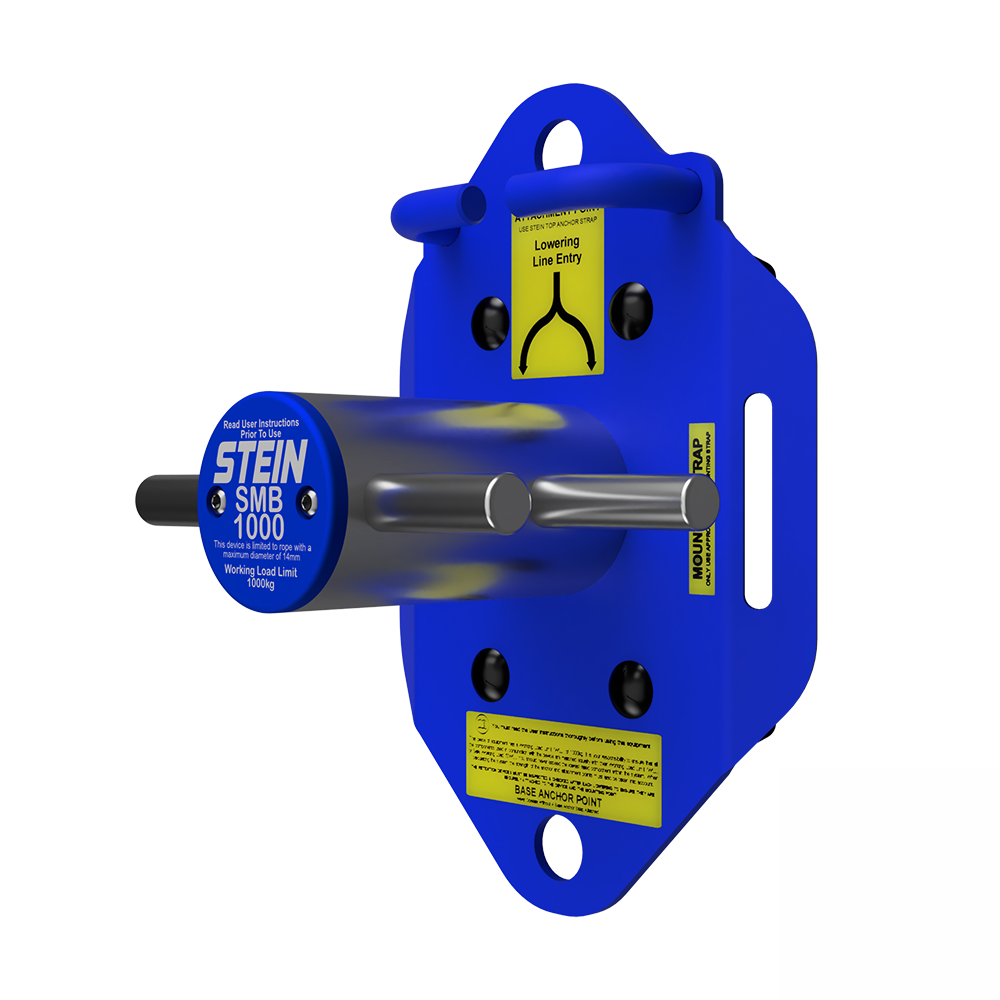

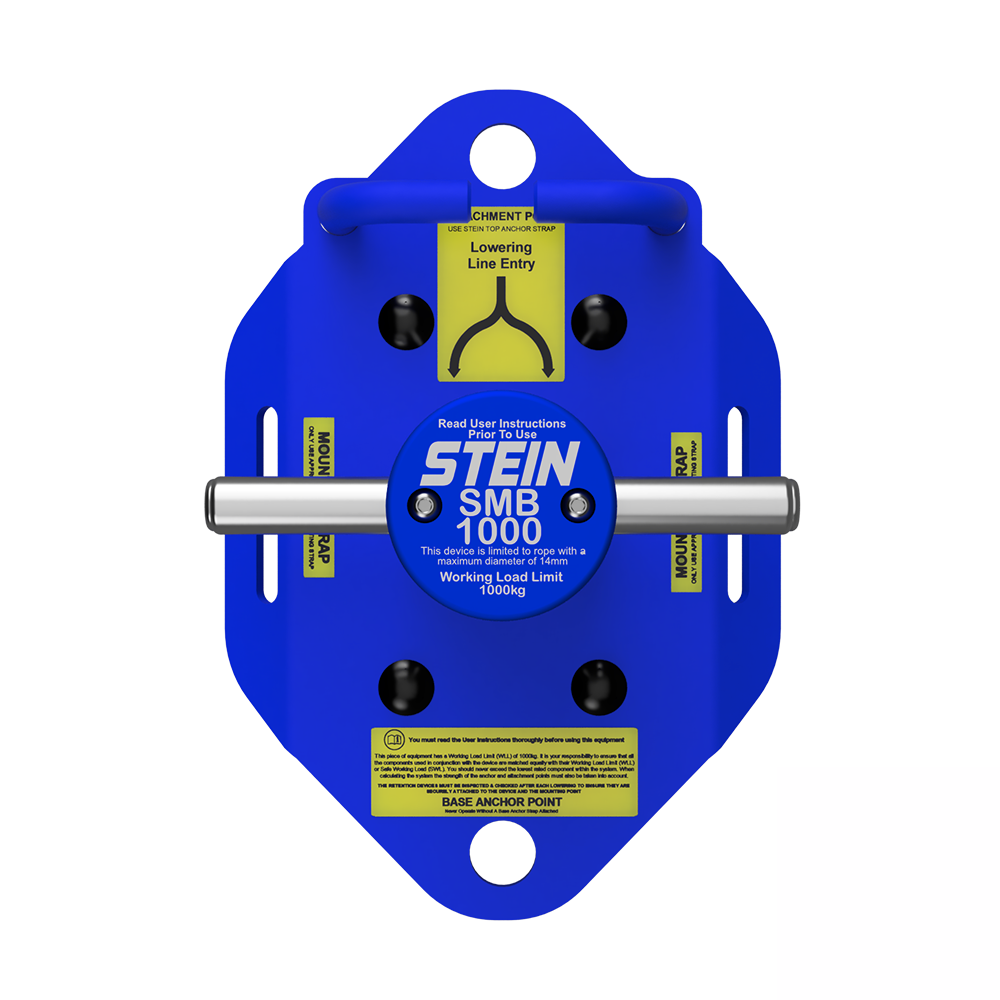

The Stein SMB1000 Rigging Bollard is a compact single-bollard lowering device upgraded for 2024 to improve durability and rope handling. As a result, it features replaceable aluminium fairleads and dual-entry rope guides, which allow the working line to enter from either side.
Furthermore, the Stein SMB1000 Rigging Bollard supports controlled lowering with a working load limit of 1000 kg and accommodates ropes up to 14 mm. Because the device weighs only 4.3 kg, one operator can mount it easily, while the replaceable preservation rubbers help reduce contact damage to the tree.
Key Features
- Single bollard lowering device upgraded for 2024
- Replaceable aluminium fairleads for extended service life
- Dual-entry rope guides allow rope entry from either side
- Front and rear fairleads guide the working line effectively
- Replaceable preservation rubbers help protect the tree
Specifications
- Working load limit: 1000 kg
- Maximum rope diameter: 14 mm
- Device weight: 4.3 kg
- Ratchet strap webbing width: 50 mm
- Ratchet strap breaking strength: 6000 kg
- Maximum tree diameter: 145 cm
- Ratchet standard: EN12195-2:2001
Why Choose This Rigging Bollard?
✅ Supports controlled lowering in a compact format
✅ Allows flexible rope entry from either side
✅ Helps reduce tree contact with preservation rubbers
✅ Supplied with a compliant, high-strength ratchet strap
How to Use & Maintain

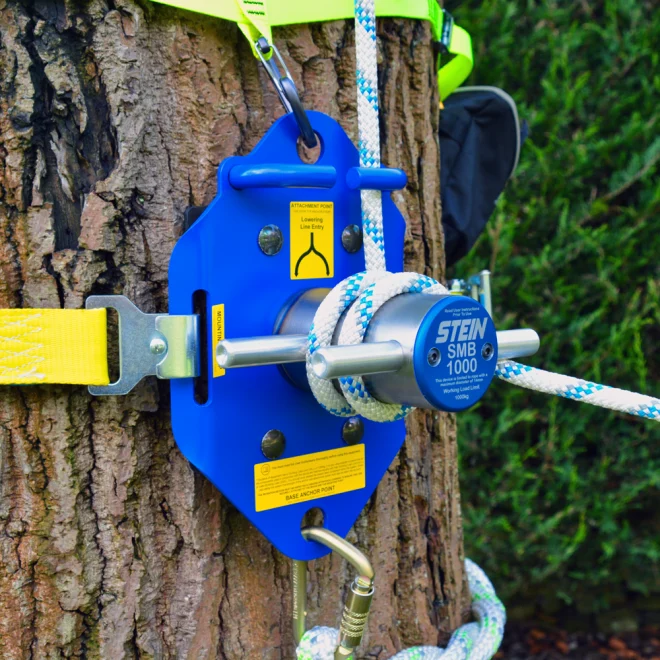

- First, suspend the device using the top suspension point.

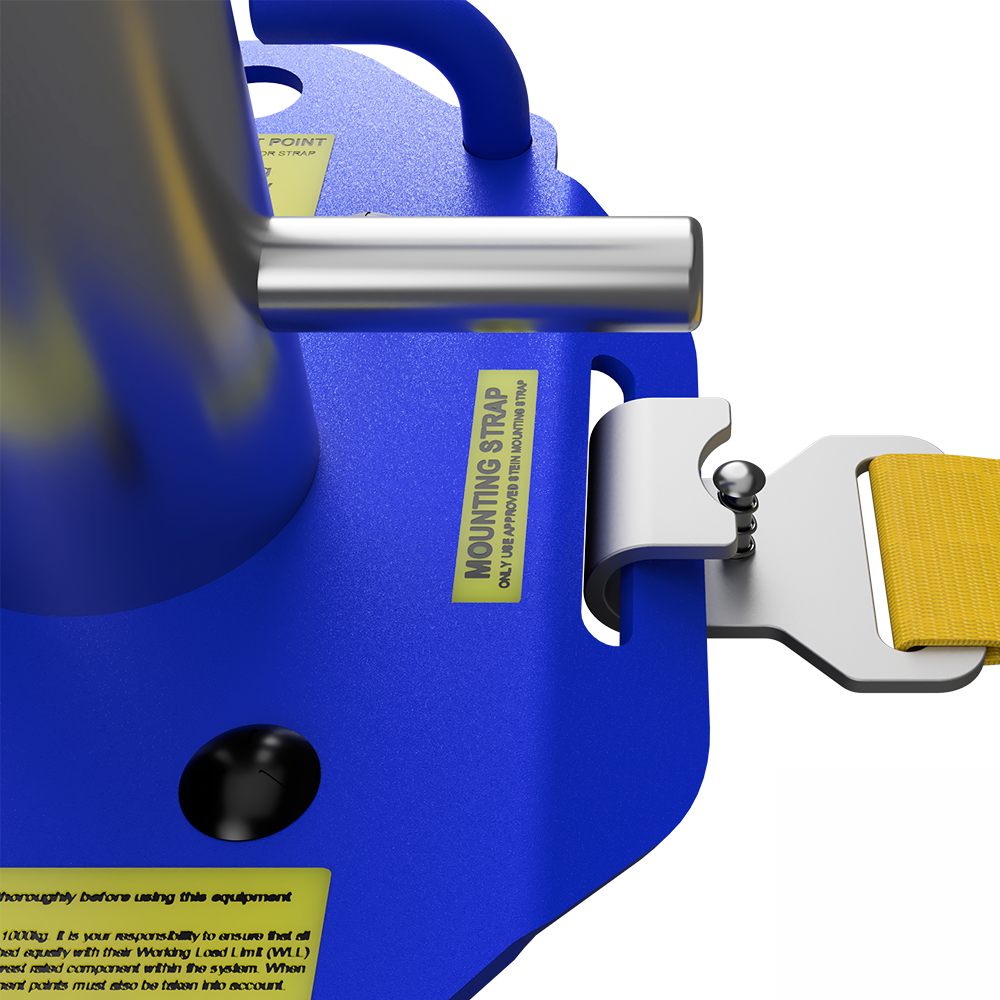

- Next, secure it to the tree with the supplied ratchet strap.
- Then, route the working rope through the fairleads and bollard.
- After that, back up the setup with a suitable sling if required.
- Finally, inspect the fairleads, rubbers, and strap for wear.
