Description

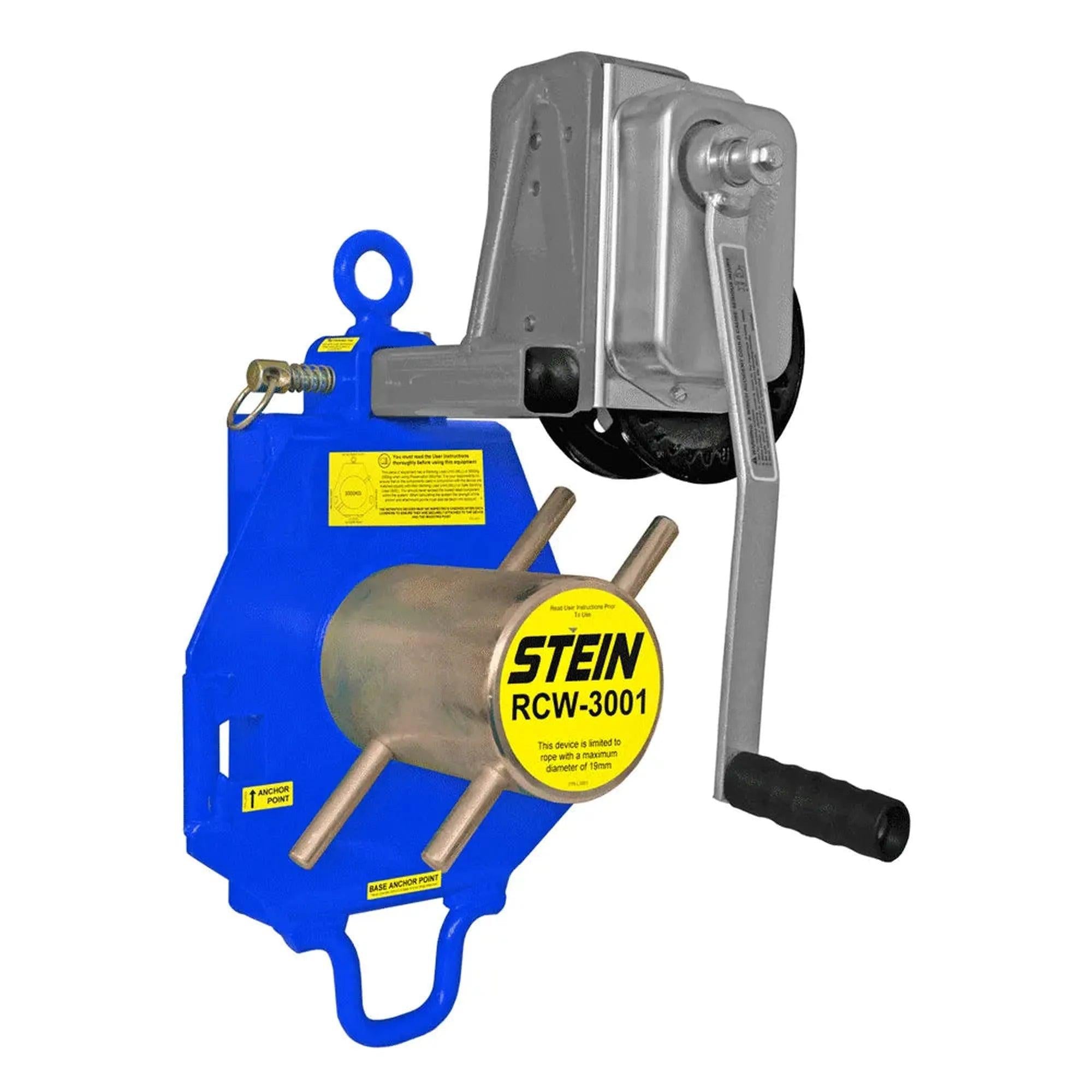

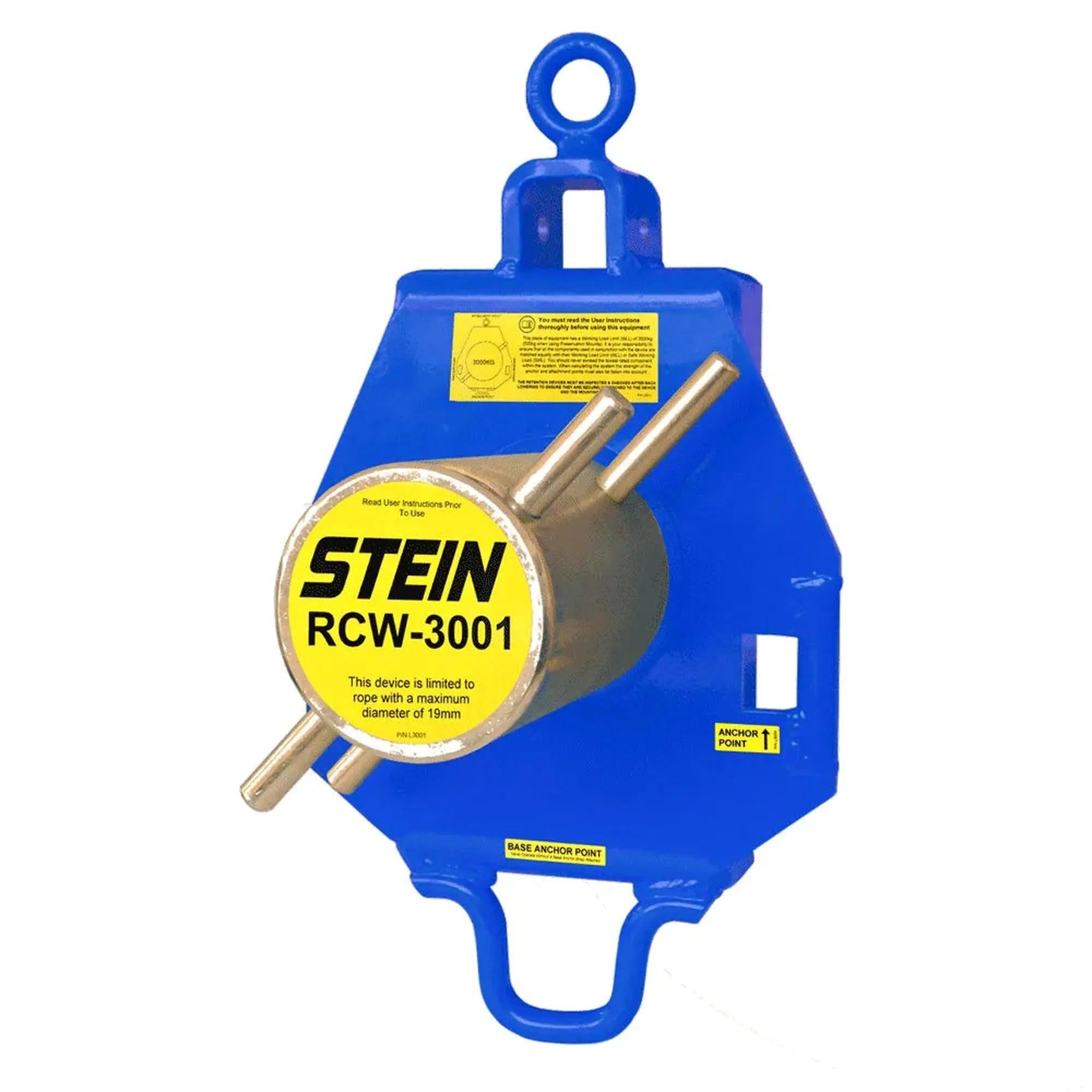

The Stein RCW3001 Lowering Device is a flexible rigging solution designed to operate as a standalone bollard or alongside a winch when lifting is required. It allows the operator to lower loads independently, while also enabling the RCWINCH to be attached or removed within seconds without tools.
Additionally, the load remains fully supported on the bollard during lowering operations rather than on the winch. Because the winch connects independently via a friction hitch and winch line, the system allows controlled lifting, simple load transfer, and unrestricted lowering once the winch is disengaged.
Key Features
- Functions independently as a lowering bollard without winch
- Allows rapid winch attachment without tools when lifting is required
- Load remains supported on the bollard during lowering procedures
- Large diameter drum supports efficient rope handling
- Angled rope guides allow quick adjustment of wraps
- Supplied with protection rubbers for tree protection
Specifications
- Model: RCW3001
- Working load limit: up to 3000 kg (subject to mounting type)

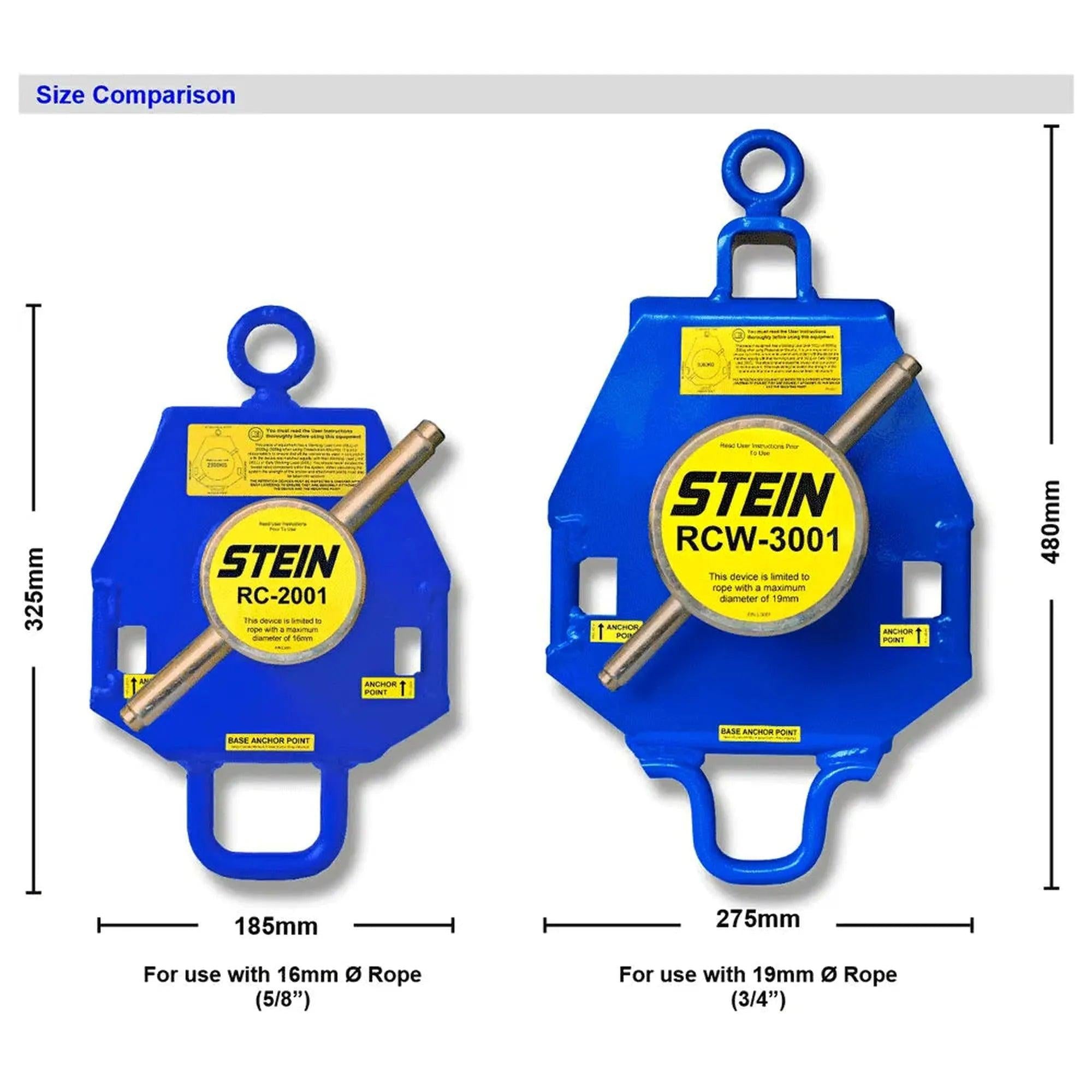

- Maximum rope size: 19 mm
- Device weight: over 13 kg (excluding winch and mounting straps)
- Drum design: large diameter with 45-degree rope guides
- Mounting: ratchet strap with optional anchor sling backup
Why Choose This Lowering Device?
✅ Operates as a standalone bollard or with an integrated winch
✅ Keeps full load support on the bollard during lowering
✅ Allows fast transition between lifting and lowering
✅ Offers flexible, user-friendly rigging control on site
How to Use & Maintain

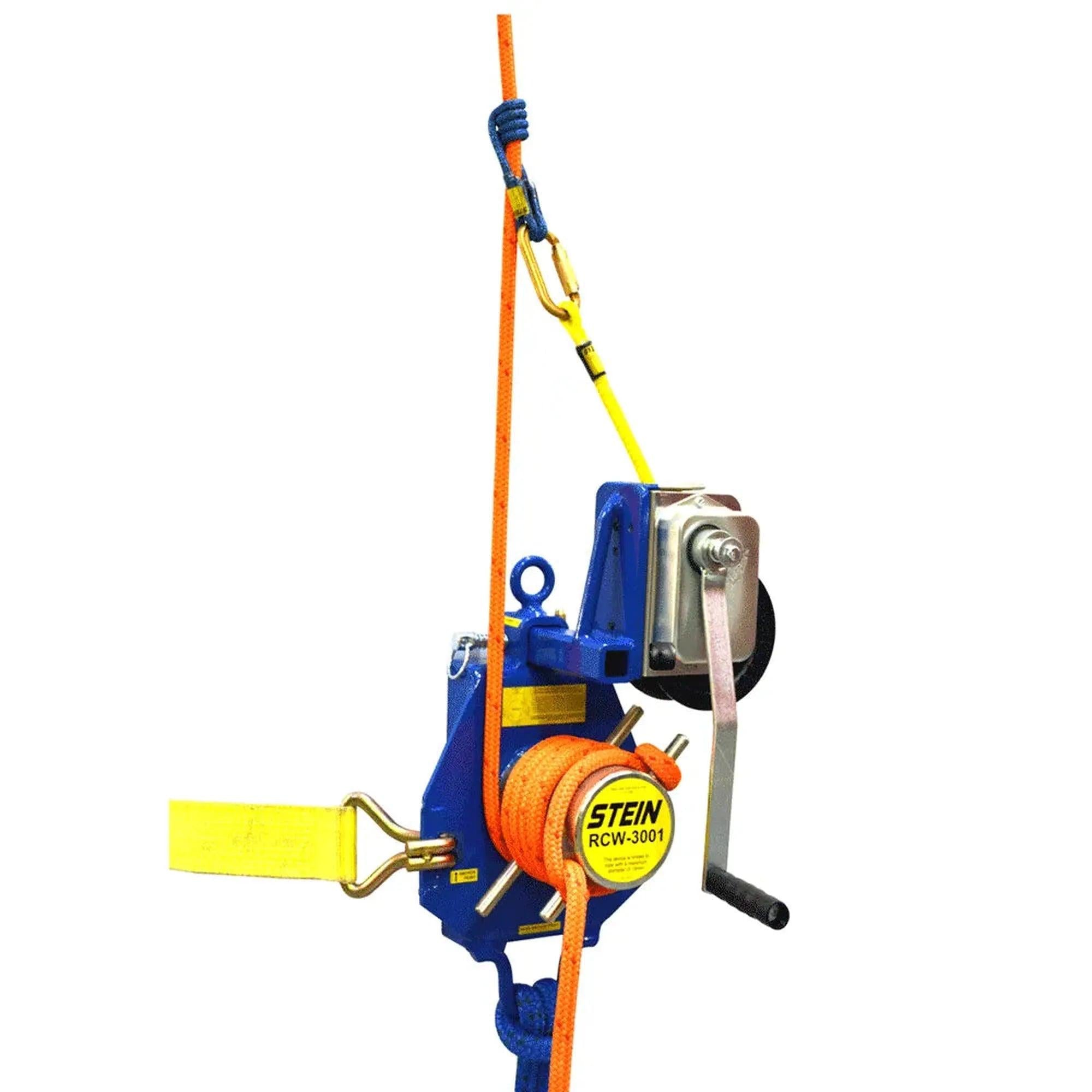

- First, suspend the device using the top attachment point.
- Secure it to the tree using the supplied ratchet strap.
- Add rope wraps to the drum as required for control.
- Attach the winch if lifting is required, then disengage for lowering.
- Finally, inspect the device, strap, and rubbers regularly for wear.
