Description

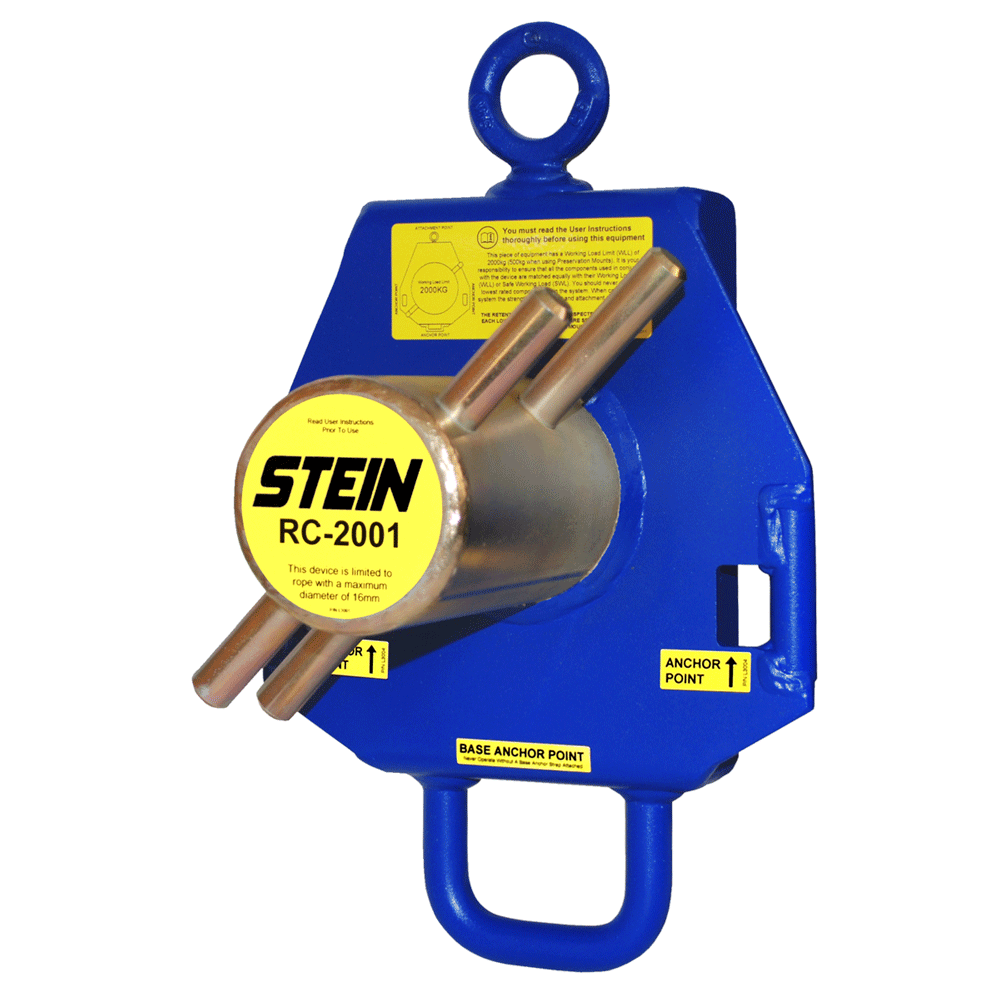

The Stein RC2001 Fixed Lowering Device is a medium-duty, single bollard lowering device designed for controlled rigging operations. It supports secure rope handling while allowing straightforward installation by a single operator using the top attachment point as a suspension point.
Additionally, the device mounts to the tree using a dedicated ratchet strap and a backed-up choked sling at the base anchor. Because it shares the same drum diameter as the RC2000, it supports larger working ropes and controlled lowering under higher loads.
Key Features
- Medium-duty fixed lowering device with single bollard design
- Top attachment point supports one-person mounting
- Supplied with ratchet strap and webbing for secure fixing
- Drum includes angled rope guide bars for controlled rope flow
- Compatible with RC-3100 pre-tension pulley
Specifications
- Model number: RC2001
- Working load limit: 2000 kg (subject to mounting type)
- Maximum rope size: 16 mm
- Style: single fixed bollard
- Barrel diameter: 76 mm
- Weight: 5.1 kg
- Weight with protection rubbers: 5.8 kg
- Length: 185 mm
- Length with protection rubbers: 205 mm
- Width: 185 mm
- Height: 325 mm
- Finish: zinc plated and powder coated
Why Choose This Lowering Device?
✅ Supports controlled lowering for medium-duty rigging tasks
✅ Allows secure mounting using ratchet strap and sling system
✅ Handles larger ropes with high working load capacity
✅ Supplied as a complete kit ready for use
How to Use & Maintain
- First, suspend the device using the top attachment point.
- Next, secure it to the tree with the supplied ratchet strap.
- Back up the base anchor using a suitable choked sling.
- Route the working rope around the bollard as required.
- Finally, inspect the device, strap, and rubbers regularly.
