Description

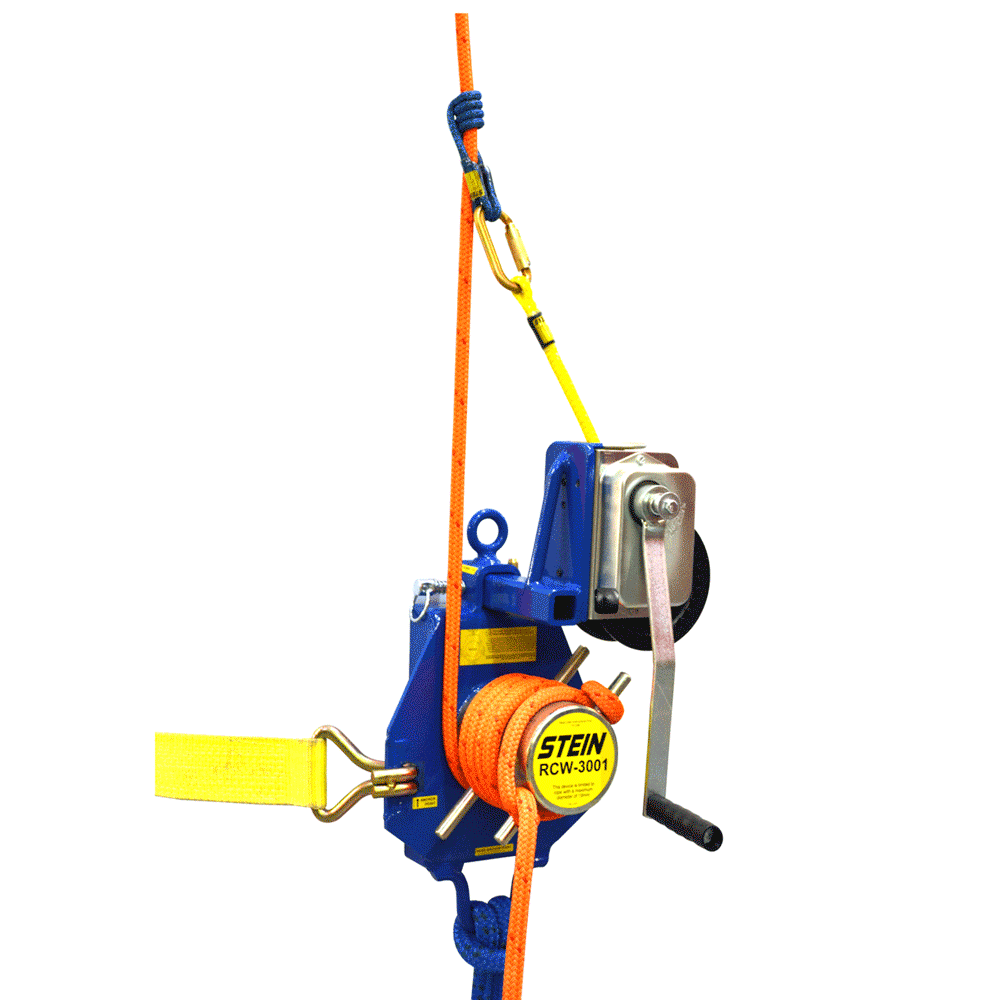

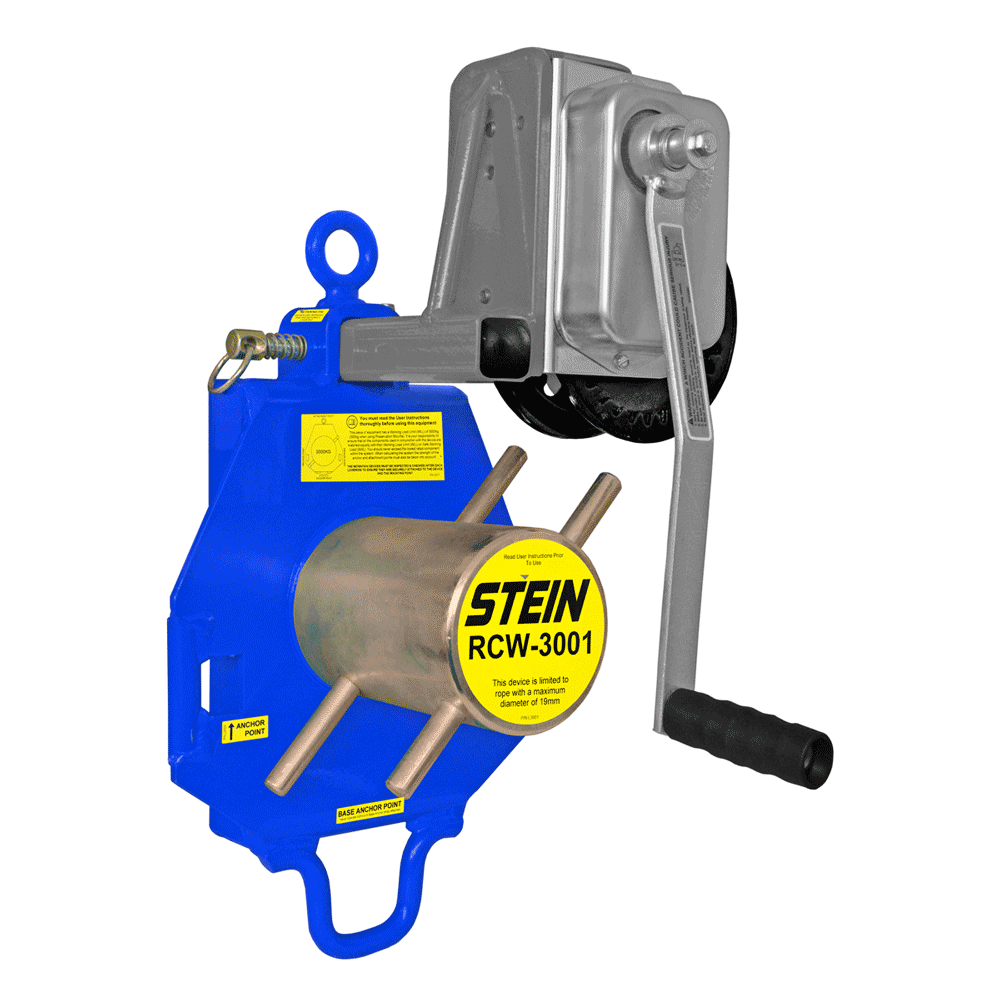

The Stein RC Winch For RCW3001 Lowering Device is a rugged brake winch designed specifically to integrate with the RCW-3001 bollard system. The Stein RC Winch For RCW3001 Lowering Device allows controlled lifting without disrupting the working line or overall system setup.
Additionally, the Stein RC Winch For RCW3001 Lowering Device uses an automatic load-actuated brake that holds the load securely if the crank handle is released. Because it operates on a 5.4:1 gear ratio, it supports smooth static lifting with low operator effort while maintaining controlled performance.
Key Features
- Designed exclusively for use with the RCW-3001 bollard
- Attaches and detaches without affecting the working line
- Automatic load-actuated brake holds the load when released
- Supplied with a custom-made winch line
- Compact and rugged construction for site use
Specifications
- Product type: braked winch
- Maximum rated capacity: 681 kg
- Gear ratio: 5.4:1
- Winch line length: 5 m
- Finish: zinc coated
- Gear and brake system: fully enclosed
- Usage: static load lifting only
- Compatibility: RCW-3001 only
Why Choose This RC Winch?
✅ Provides controlled static lifting with low operator effort
✅ Holds loads securely using an automatic braking system
✅ Integrates cleanly with the RCW-3001 bollard setup
✅ Built for durability and corrosion resistance on site
How to Use & Maintain
- First, attach the winch securely to the RCW-3001 bollard.
- Next, connect the supplied winch line as required.
- Operate the crank handle to lift static loads only.
- Always back up the load on the bollard during lifting.
- Finally, inspect the winch and line regularly and follow the user manual.
