Description

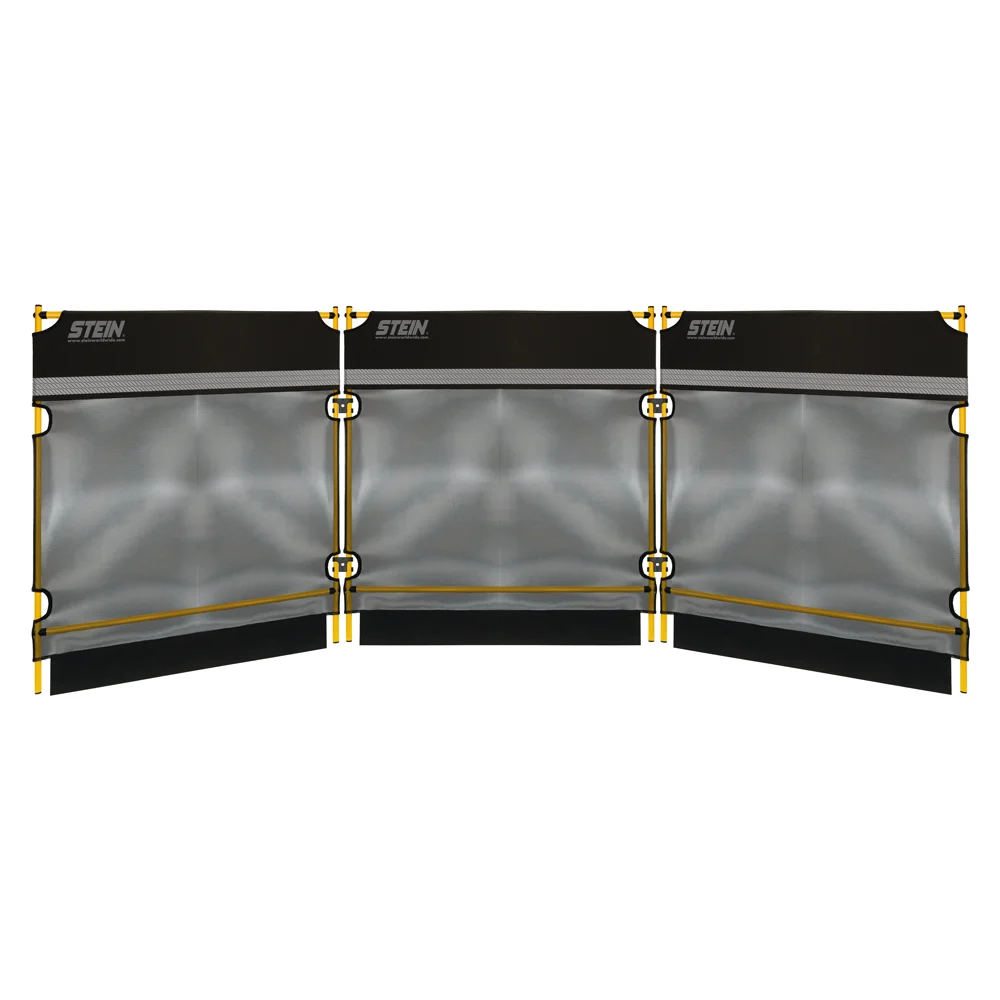

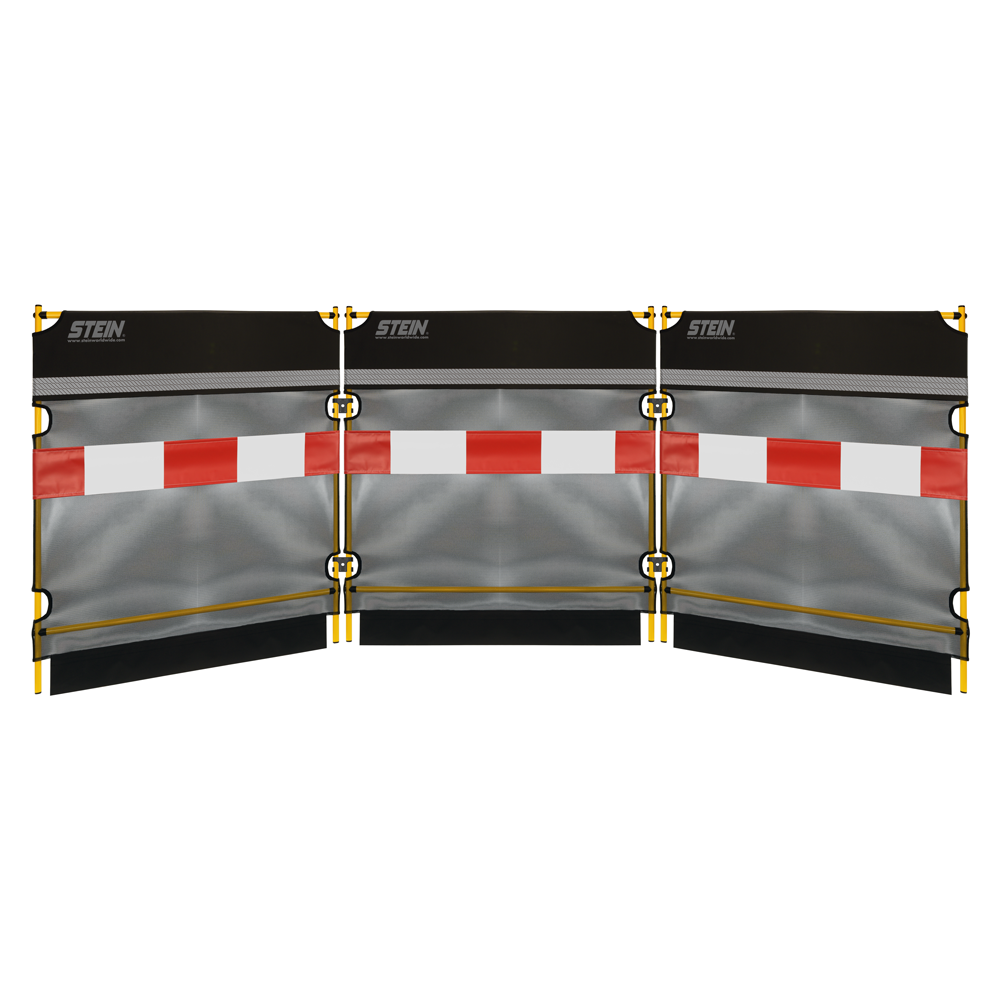

The Stein Modular Stump Grinder Guarding System is designed to help reduce the risk of flying debris during stump grinding operations. It provides a configurable guarding solution made up of three individual panels, allowing operators to create a controlled working area on site.
Additionally, the system uses steel-framed mesh panels connected with quick-release clips, which allows fast setup and adjustment without tools. Because panels can be added or removed easily, the system supports flexible layouts while remaining practical to transport and deploy.
Key Features
- Consists of three individual guarding panels
- Panels connect using quick-release hinge clips
- Panels can be added or removed to customise layout

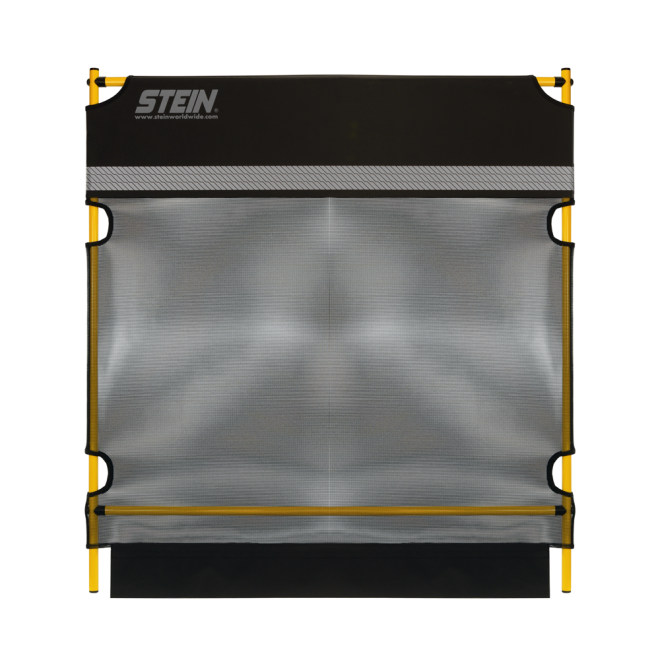

- Each frame covered with double-layered close-knit mesh
- High-visibility reflective stripe fitted to each panel
Specifications
- Number of panels: 3
- Panel height: 115 cm
- Panel width: 105 cm
- Total system length (3 panels): 3.20 m
- Panel weight: 4.8 kg each
- Total system weight: 15.0 kg including clips
- Frame material: 20 mm steel tube
- Finish: powder coated
- Fixings: M10 coated hex screws
Why Choose This Guarding System?
✅ Helps reduce the risk of flying debris during stump grinding
✅ Allows flexible panel layout to suit site conditions
✅ Assembles quickly without tools using quick-release clips
✅ Supports transport and handling with manageable panel sizes
How to Use & Maintain
- First, connect the panels using the quick-release clips.
- Position the system to suit the working area and risk assessment.
- Check all connections before operating machinery.
- Use alongside appropriate training and safe working practices.
- Finally, inspect frames, mesh, and clips regularly for damage.
